Hillrom Welch Allyn CP 150 Electrocardiograph

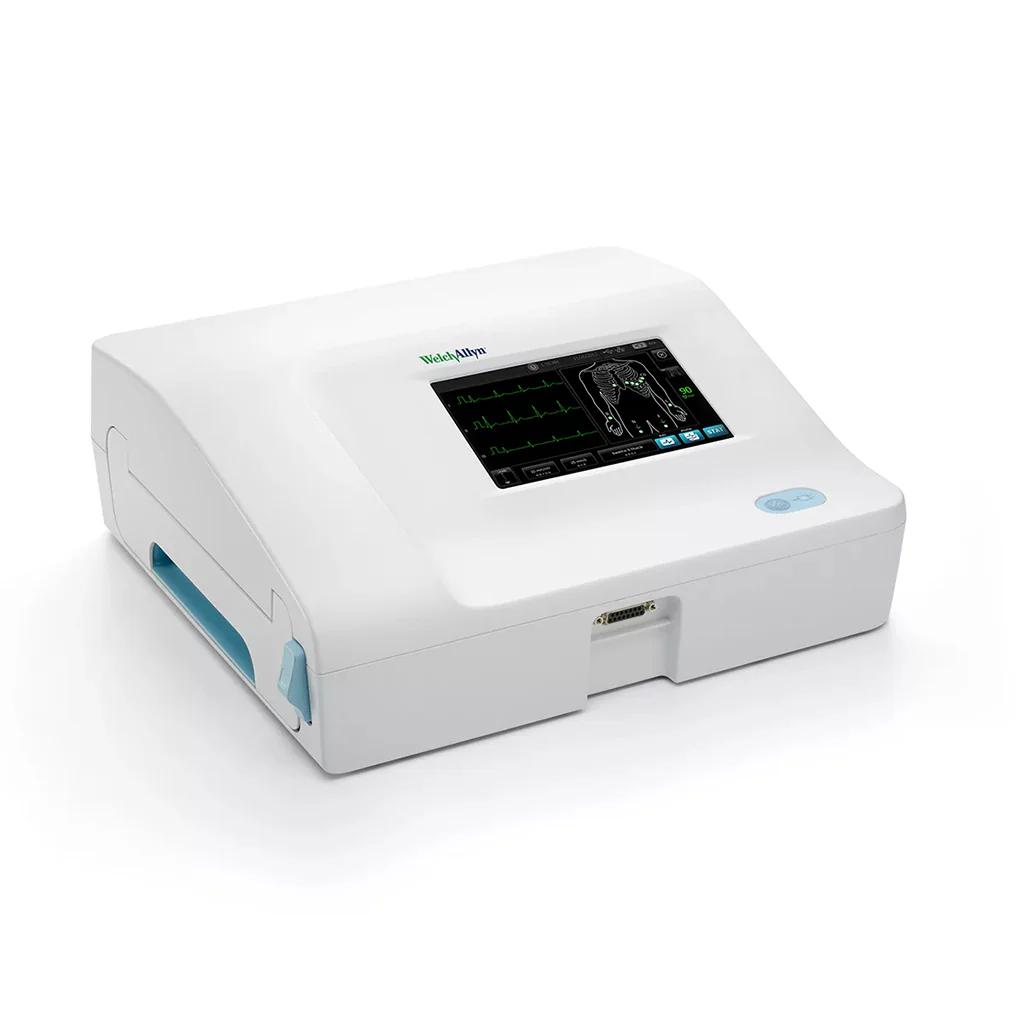

Hillrom Welch Allyn CP150A Resting Electrocardiograph
Designed for your primary care practice's workflow, the CP 150 ECG machine provides full-size printouts. The 7” color touchscreen display lets you easily enter patient data. With different configurations, caregivers have a device that is intuitive and easy to use across the care team
Features
- When performing a STAT ECG, the ECG Print Preview allows the user to verify ECG quality prior to printing
- Three-, six- or 12-lead ECG preview options
- Quick start to power up the device, so you can take an ECG at a moment's notice
- Battery operation lets you easily transport your resting ECG device from room to room
- Spirometry module lets you perform a second reimbursable test with one device
- The software detects the possible presence of a pacemaker. If you confirm that the
patient has a pacemaker, the ECG report includes no interpretation, and it indicates that a pacemaker was detected - Intuitive touchscreen display for more accuracy
- Lead quality display identifies connection problems before completing a test
- Instant-On feature helps eliminate typical start-up delays

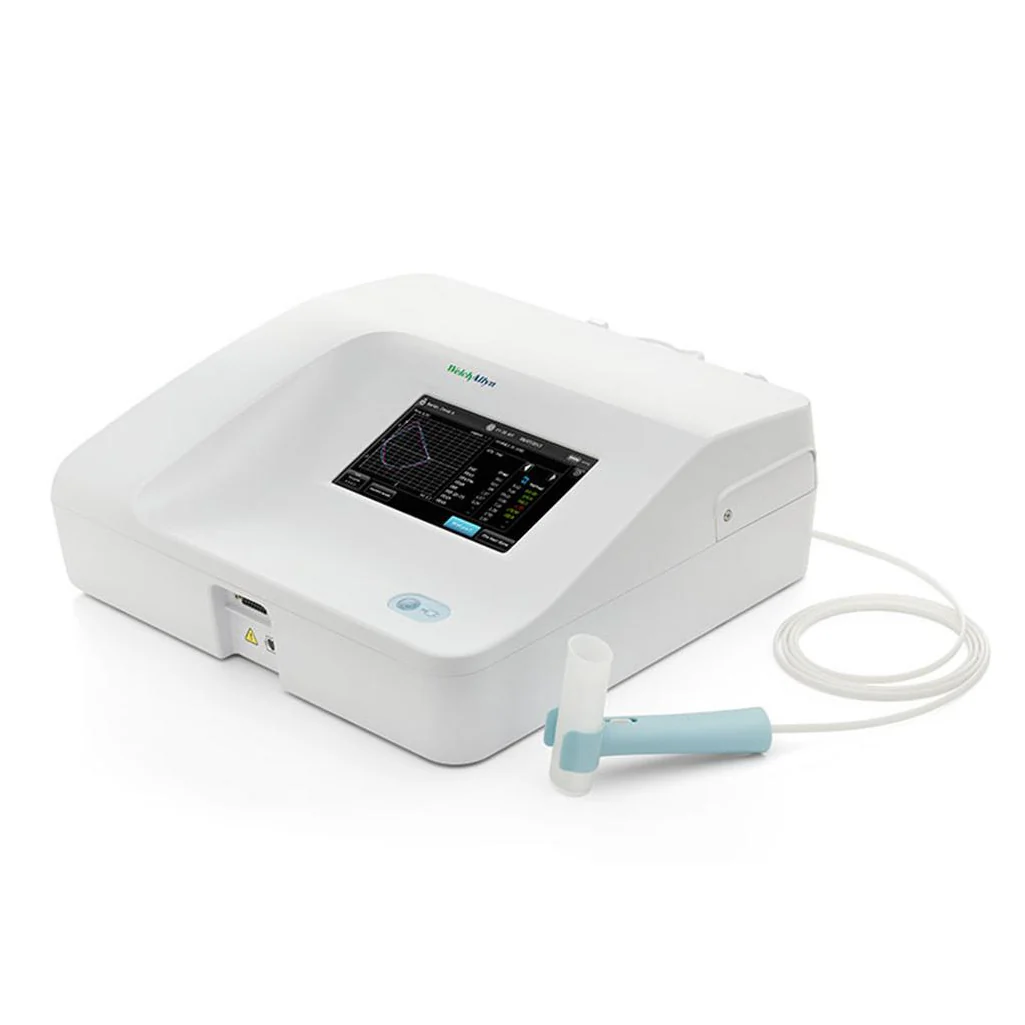

Spirometry Option
The CP 150 ECG lets you perform two reimbursable diagnostic exams with one device. Help manage your COPD patients and maximize HEDIS scores with a spirometry solution that includes automatic interpretation and reversibility analysis. Plus, you can customize report formats and screen displays to meet your workflow needs
- Perform FVC and pre- and post-BD testing with automatic interpretation and reversibility analysis
- Customize report formats and screen displays to fit your needs and workflow
- Ambient sensors can eliminate the need for the user to find and enter values for temperature, pressure and humidity
- Manage patients with COPD to help you maximize HEDIS scores
Specifications
- 15" x 14.1" x 5.4"
- 11.5 lbs
- Keyboard type: Polyester overlay

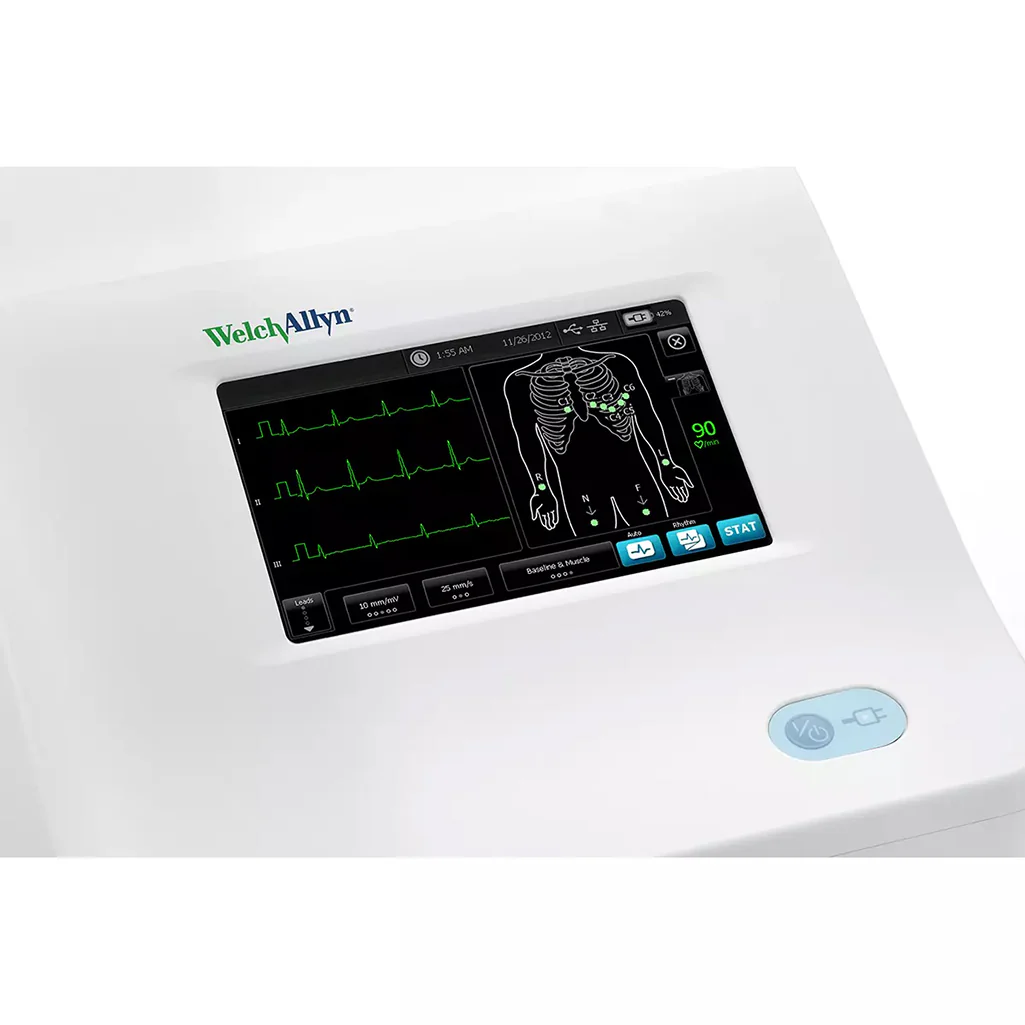

- Display: TFT, 7" color touch screen
- Resolution: WVGA, 800 X 480
- Thermal Paper: 8.25" x 11", 200 sheets
- Thermal Printer (Internal): Computer-controlled dot array, 8 dots/mm
- Thermal-chart-paper speeds: 10, 25, 50 mm/s
- ECG Storage: At least 100 ECG tests
- Patient Storage: Up to 50 patients
- Frequency Range: 0.3 to 150 Hz
- Digital Sampling Rate: > 1,000 samples/second/channel;
- Pacemaker Detection: ANSI/AA,O EC11
- Power Requirement: Universal AC supply 110-240V, 50/60 Hz, 1.5 A maximum
- Rechargeable battery: 9 cells
Hillrom Welch Allyn CP150A Resting Electrocardiograph
Designed for your primary care practice's workflow, the CP 150 ECG machine provides full-size printouts. The 7” color touchscreen display lets you easily enter patient data. With different configurations, caregivers have a device that is intuitive and easy to use across the care team
Features
- When performing a STAT ECG, the ECG Print Preview allows the user to verify ECG quality prior to printing
- Three-, six- or 12-lead ECG preview options
- Quick start to power up the device, so you can take an ECG at a moment's notice
- Battery operation lets you easily transport your resting ECG device from room to room
- Spirometry module lets you perform a second reimbursable test with one device
- The software detects the possible presence of a pacemaker. If you confirm that the
patient has a pacemaker, the ECG report includes no interpretation, and it indicates that a pacemaker was detected - Intuitive touchscreen display for more accuracy
- Lead quality display identifies connection problems before completing a test
- Instant-On feature helps eliminate typical start-up delays
Spirometry Option
The CP 150 ECG lets you perform two reimbursable diagnostic exams with one device. Help manage your COPD patients and maximize HEDIS scores with a spirometry solution that includes automatic interpretation and reversibility analysis. Plus, you can customize report formats and screen displays to meet your workflow needs
- Perform FVC and pre- and post-BD testing with automatic interpretation and reversibility analysis
- Customize report formats and screen displays to fit your needs and workflow
- Ambient sensors can eliminate the need for the user to find and enter values for temperature, pressure and humidity
- Manage patients with COPD to help you maximize HEDIS scores
Specifications
- 15" x 14.1" x 5.4"
- 11.5 lbs
- Keyboard type: Polyester overlay
- Display: TFT, 7" color touch screen
- Resolution: WVGA, 800 X 480
- Thermal Paper: 8.25" x 11", 200 sheets
- Thermal Printer (Internal): Computer-controlled dot array, 8 dots/mm
- Thermal-chart-paper speeds: 10, 25, 50 mm/s
- ECG Storage: At least 100 ECG tests
- Patient Storage: Up to 50 patients
- Frequency Range: 0.3 to 150 Hz
- Digital Sampling Rate: > 1,000 samples/second/channel;
- Pacemaker Detection: ANSI/AA,O EC11
- Power Requirement: Universal AC supply 110-240V, 50/60 Hz, 1.5 A maximum
- Rechargeable battery: 9 cells
Select Choose Your Configuration:
From $1,473.28
Original: $4,209.36
-65%Hillrom Welch Allyn CP 150 Electrocardiograph—
$4,209.36
$1,473.28Description
