Newman DigiDop Obstetric Doppler

The DigiDop Model 901 is a counter top or wall mount Doppler that features a larger, more powerful forward facing speaker for room filling sound. Advanced digital sound processing enhances the sounds you want to hear while reducing those you don't. The DD-901 provides a large, sharp, bright display of the hart rate. The display also indicated battery, volume, and signal strength status. The readout can easily be seen in a variety of conditions. The powerful digital processor in the DigiDop performs a true auto-correlation calculation for fast, accurate heart rate.

Features

Superior Sound Quality

Sensitivity & Audio Response
Digital Sound Clarity - DSC
Sound Processor/Enhancer (Reduces sounds you don't want to hear as well)
DSC Processing Optimally Set for Each Probe Frequency
2 Powerful High Fidelity Speakers w/ Smooth & Rich Response

Built to Last

Industry leading five-yr warranty
The combination of sturdy design/warranty will save you significant service cost
Body is a mix of touch plastics with a stainless-steel grill
Grill has micro-screen openings to protect the speaker
Speaker itself has an internal sound transparent fabric cover keeping out dirt/dust
Magnetic probe holder cradling the probe when not used
Open design avoids gathering dirt, gel, & germs

Probes

All Probes Work on ALL DigiDops
Smooth Contour Design
Comfortable for the Patient
Easy to Clean

Fetal Probes

2MHz - Provides deep penetration for late term pregnancy or larger patients
3MHz - Sensitive to early fetal hearts by can also be used throughout the pregnancy
Both probes are available in waterproof versions for water-assisted labor and delivery

Vascular Probes

5MHz - Provide deep penetration for deeper arteries and veins
8MHz - Sensitive for vessels near the surface like the radial, posterior tibial, & Dorsalis pedis arteries

PPG Probe

DPPG - Obtaining pulses in the digits to assist in toe-brachial or penile index measurements

Batteries

Never worry about batteries again
Can be recharged more than 2000 times
Maintains their charge for years when not being used
Will not overcharge
Detects if non-rechargeable batteries are inserted & stops charging preventing damage
Uses a standard micro USB connection

Specifications

Level of protection against electrical shock
Type B applied part
Operating Temp: 10-40°C
Operating Humidity: 30-75%
Audio bandwidth/power: 100-3000Hz, 1.0 W

Newman Fetal and Vascular Dopplers

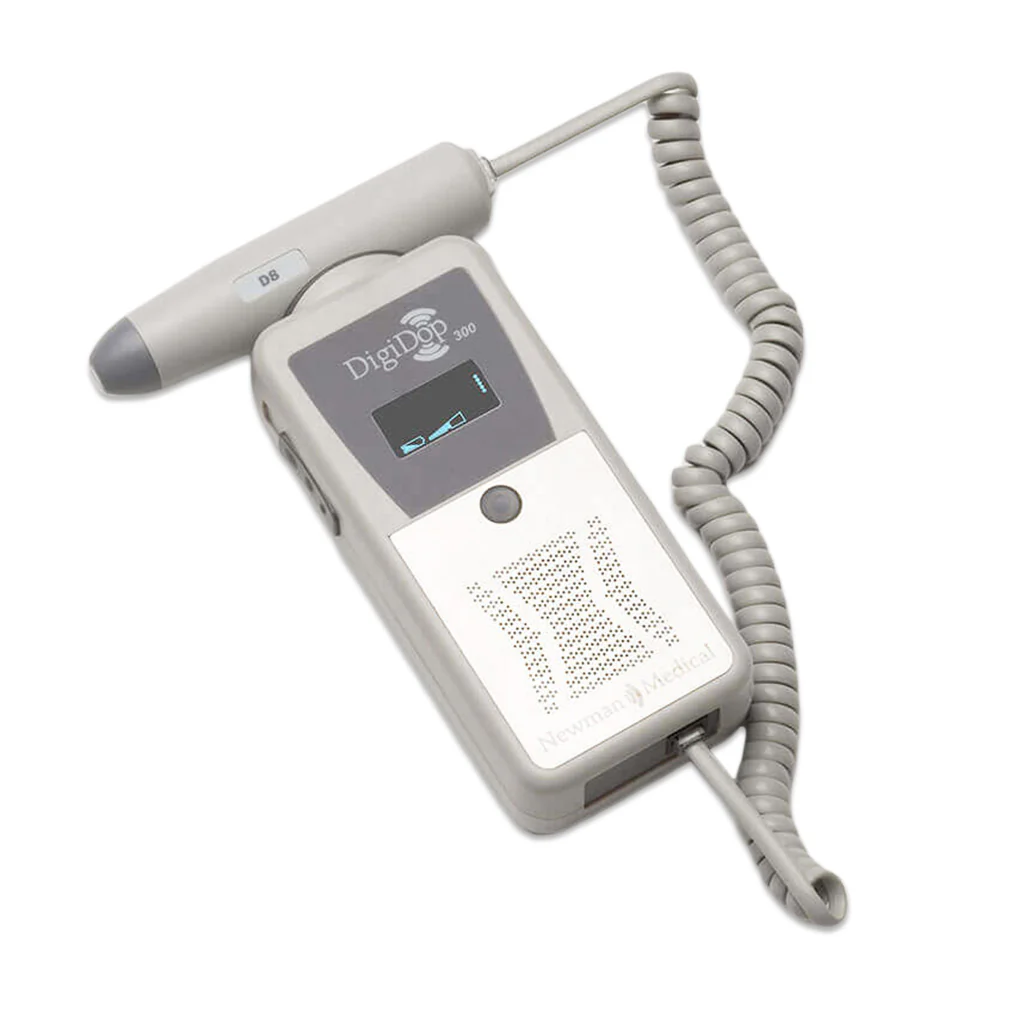

Newman DigiDop Classic Fetal/Vascular Doppler
