QT Medical PCA 300T ECG

A portable, wireless 12-lead ECG optimized for efficiency, accuracy and quality

*Check the Brochures for an Image of the Cable Pack

Features

Auto computer interpretation
Secure file transfer protocol for seamless EHR upload
Dedicated Android tablet with pre-installed app
Superior signal strength
Less noise and interference
No calibration required, low maintenance
Ready to use out of the box

Specifications

Display: Samsung Galaxy Tablet (included)
Sampling Rate: 1000 Hz
Leads: 12-lead
ECG Hookup: 12-lead ECG patient cable or QHeart sensor
Auto Interpretation: Yes
Connectivity: Bluetooth
Battery Options: Rechargeable > 300 recordings
Battery Life: 16 hours
Memory/Data Storage: Local storage on connected device
Export Options: PDF, XML, DICOM
ECG Paper: Regular paper on wifi printers
Portability: Highly portable wireless
Weight: 2.4 oz
Compatibility: iOS, Android
ECG management: On tablet

Patient Cable vs. QHeart Sensor

Patient Cable

Lead Wires: 10
Connectors: Banana heads
Compatibility: Most commercially available ECG electrodes
Placements: AHA, IEC
Shelf Life: 3 years

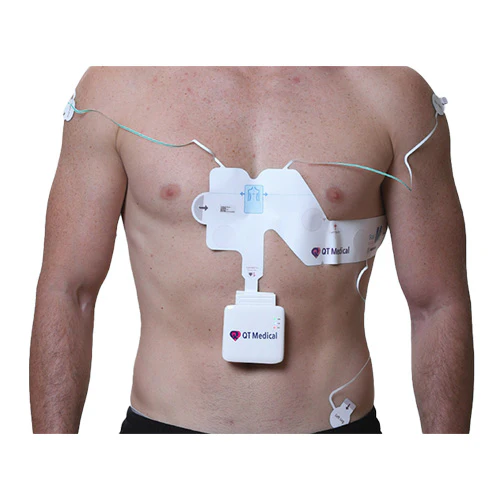

QHeart Sensor

Lead Electrodes: 10
Lead Placement: 70% faster
Size: 1, 2, 3, S, M, L, XL
Indication: Single patient use, adult and pediatric
Shelf Life: 3 years
Weight: <3.9 oz

Secure File Transfer Protocol (SFTP)

Requires a one-time setup to establish the connection between the tablet and the local network

Record an ECG - Perform an ECG with PCA 300. Data is transmitted to the tablet
Automatic Report Transfer - Once the recording is complete, the tablet automatically transfers the ECG report to the designated folder in the healthcare system's local network
Access ECG Reports - Access the ECG reports conveniently in the designated folder on the computer
Integration with EHR - Easily upload the ECG reports from the folder to the EHR

How Does This Compare to a Brand like Midmark?

The key differences between the PCA 300T and the Midmark Digital ECG comes down to independence, portability, and a cost of ownership. The PCA 300T is sold as a complete system that includes its own Samsung Galaxy tablet, while Midmark requires the customer to provide a compatible PC or tablet for operation. The PCA 300T runs up to 17 hours on a single charge compared to Midmark's 4-6 hours, making it far more reliable for mobile use. Storage is also more flexible - the PCA 300T allows local storage in tablet, whereas Midmark limits storage to the connected device and often requires extra software or integration fees. Altogether, the PCA 300T is more portable, cost-effective and the customer-friendly option

What's in the Box?

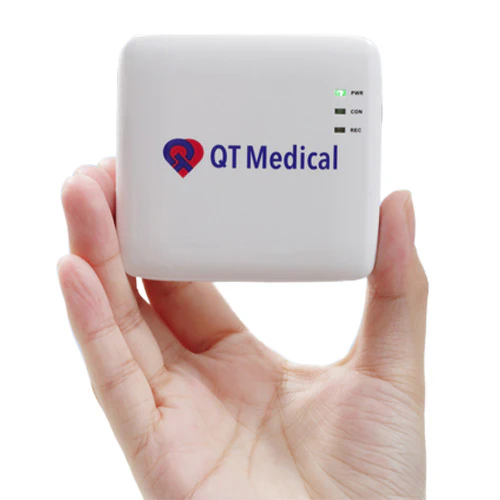

PCA 300 Recorder
QHeart Sensors (50) or Patient Cable (1)
Wall Charger
Carrying Case
Samsung Galaxy Tablet

QT Medical ECG

QT Medical PCA 300T Portable, Wireless, 12-Lead ECG
